Description:
The mechanical timer’s operating principle and product structure are all similar to mechanical clock. We also use many precious parts same as clock’s parts, such as micro-gears, clockwork spring and hairspring to guarantee that our products could control time accurately in their working process. We use many exclusive raw material and lubricating oil in our products, and we also use unique material treatment methods to guarantee that our product could operate well under the 125 degrees centigrade work environment.
Applications:
1. Freestanding Oven
2. Built-in Oven
3. Mini Oven
4. Microwave Oven
5. Gas Cooker
6. Other Home Appliances
Specifications:
| Style | Mechanical Count Down And Alarm |
| Working Temp. | T125 |
| Range Of Time Control | 30’/60’/
120’ max |
| Tolerance Of Time Control | ±1~2’ |
| Terminal Size | NONE |
| Material Of Gears | Carbon Steel + Heat Treatment |
| Material Of Clockwork Hairspring | Special Spring Steel + Heat Treatment |
| Material Of Shell | Galvanized Steel |
Easy to install, clean, and maintenance
All of timer products are all manufactured according to the standard appearance and install dimension. So you could easily install or remove the timers from the oven machine. The timer appearance is a sealed box, it could keep things like dust out. And the surface of the product is very smooth, it is convenient for clean and maintenance.
Working stably under high temperature
The raw materials of the parts of timer all have good high temperature resistance properties. So the timer could work stably under the high temperature, at least 125 degrees centigrade.
| COMPONENTS | RAW MATERIAL | TEMP. RESISTANCE |
| gears | Carbon steel | >1500 ℃ |
| clockwork spring | Spring steel | >1500 ℃ |
| hairspring | Spring steel | >1500 ℃ |
| Shell | Galvanized steel | >1500 ℃ |
| Terminal Pin | Galvanized steel | >1500 ℃ |
| Oil or grease | Special treatment | >125 ℃ |
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Product Tags:
|
|

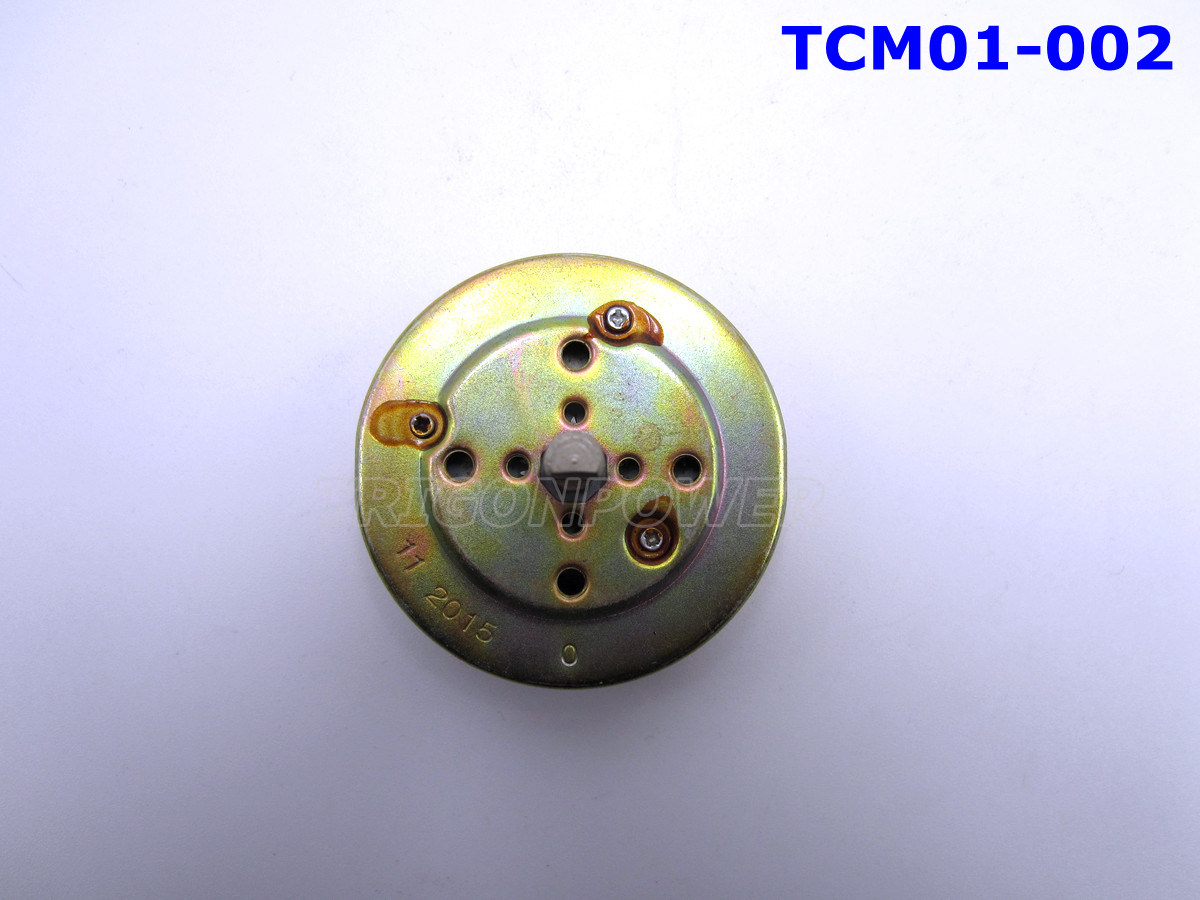

Built In Oven / Mechanical Oven Timer TCM01-002 With Galvanized Steel Shell Images
|
